Streamkeepers Database | Module 1 Observations

Module 1 Action Items for BOWKER CREEK Survey # 109

Stream Name	Survey Date	Organization	Project Name	Survey ID	Data Entered By
BOWKER CREEK	2020-08-30	Friends of Bowker Creek	Bowker Creek Salmon	109	Stormy Kirkland

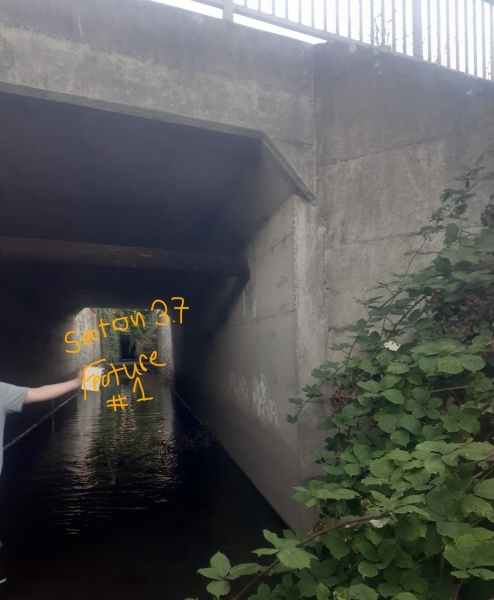

	ID 1484	Feature # 1	From Last 0m	Type Obstruction-Culvert	Size 17.53m length; 3.2m height; 3.6m wide	Bank Across	Adjacent Land Use Commercial
Description: Bee street culvert.
Action Items:

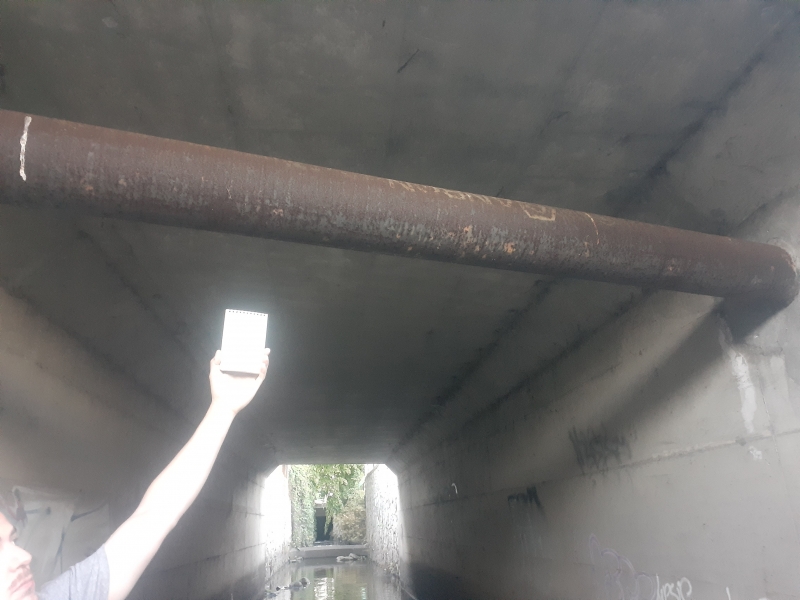

	ID 1485	Feature # 2	From Last 1.6m from starting point	Type Discharge Pipe-Storm Drain	Size .2 diameter	Bank Across	Adjacent Land Use Commercial
Description: Metal pipe running horizontally. Not draining into stream.
Action Items:

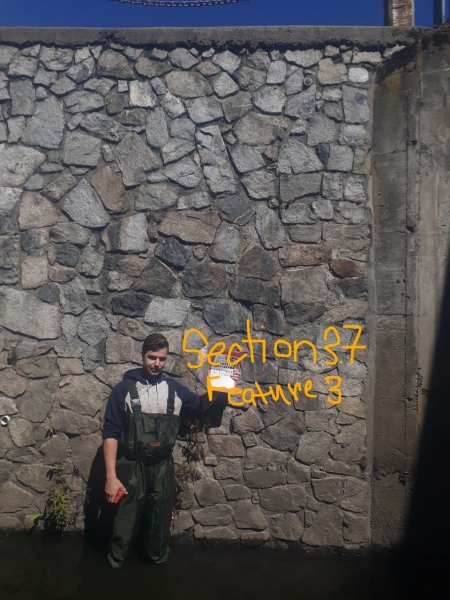

	ID 1486	Feature # 3	From Last 17.5m	Type Modification-Other	Size 4.3m heigh	Bank Left	Adjacent Land Use Commercial
Description: Rock Retaining Wall on left bank
Action Items:

	ID 1487	Feature # 4	From Last 0m	Type Modification-Other	Size 4.3m heigh	Bank Right	Adjacent Land Use Commercial
Description: Retaining wall on right bank. Same measurements as left side. The wall is 0m from the end of the culvert.
Action Items:

	ID 1488	Feature # 5	From Last 1.4m	Type Discharge Pipe-Storm Drain	Size 0.05m diameter for both; 3.76m drop to substrate a	Bank Left	Adjacent Land Use Commercial
Description: Two drains on the left bank. Both 0.05m in diameter with different measurements for drop to the substrate.
Action Items: Second pipe (0.05m and 0.8m drop to substrate) is blocked with plant and soil

	ID 1489	Feature # 6	From Last 1.7m	Type Discharge Pipe-Storm Drain	Size 0.05m diameter for both; 1.08 m drop to L substrat	Bank Both	Adjacent Land Use Commercial
Description: 2 storm drains. Both pipes 0.05m diameter, different measurements for drop to substrate.
Action Items:

	ID 1490	Feature # 7	From Last 2.5m	Type Discharge Pipe-Storm Drain	Size all 0.05m diameter; Left pipe: 0.83m to substrate;	Bank Left	Adjacent Land Use Commercial
Description: 3 pipes. One on left, two on right. All have a diameter of 0.05m
Action Items:

	ID 1491	Feature # 8	From Last 2.6m	Type Discharge Pipe-Storm Drain	Size all 0.05m diameter; Left pipe: 0.56m to substrate;	Bank Both	Adjacent Land Use Commercial
Description: 3 pipes; 1 on left, 2 on right. All 0.05m diameter, different measurements for drop to the substrate.
Action Items:

	ID 1492	Feature # 9	From Last 3.35m	Type Discharge Pipe-Storm Drain	Size both 0.05m in diameter; Left pipe: 0.77m to substr	Bank Both	Adjacent Land Use Commercial
Description: 2 pipes, left and right side. Both pipes 0.05m diameter, different drop to substrates.
Action Items:

	ID 1493	Feature # 10	From Last 2.7m	Type SIDE CHANNEL	Size 0.15 m to substrate	Bank Left	Adjacent Land Use Commercial
Description: Enclosed side channel coming out of the wall. No pipe near crack in wall.
Action Items: No odor, above water surface

	ID 1494	Feature # 11	From Last 1.1m	Type Discharge Pipe-Storm Drain	Size All pipes are 0.05m in diameter; Left pipe has a 0	Bank Both	Adjacent Land Use Commercial
Description: 3 pipes: 1 on left and 2 on right. All 0.05m in diameter.
Action Items:

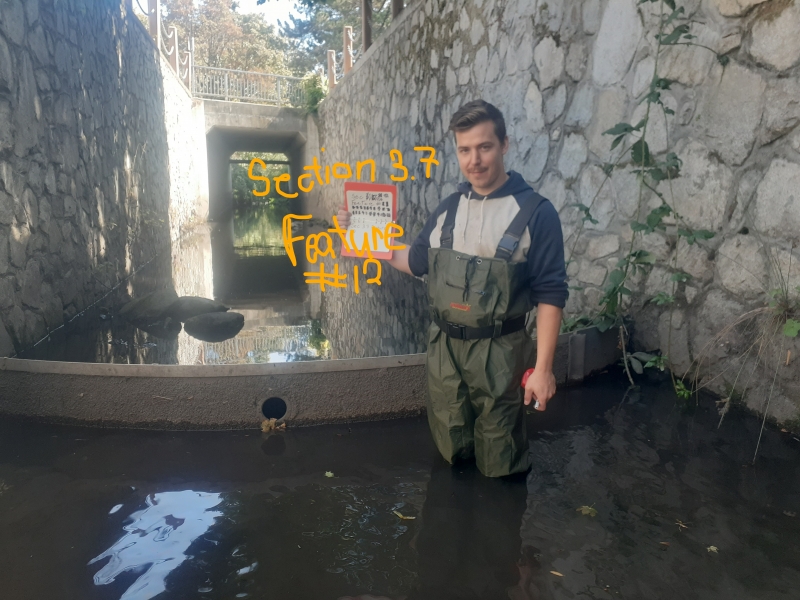

	ID 1495	Feature # 12	From Last 2.4m	Type Obstruction-Dam	Size 4.1m width; depth 0.22m	Bank Across	Adjacent Land Use Commercial
Description: Dam is .78m height from top to upstream substrate. 0.8m height on downstream side.
Action Items:

	ID 1496	Feature # 13	From Last 0.5m	Type Discharge Pipe-Storm Drain	Size 0.05m diameter for both; Left pipe: .92m above sub	Bank Both	Adjacent Land Use Commercial
Description: 2 pipes both 0.05m in diameter. Different measurements for drop to substrate.
Action Items: clogged pipes with silt and plants

	ID 1497	Feature # 14	From Last 2.4m	Type Discharge Pipe-Storm Drain	Size 0.05m diameter for both; Left pipe is .85m drop to	Bank Both	Adjacent Land Use Commercial
Description: 2 pipes: one on left and one on right. Both have 0.05m diameter and different measurements for drop to substrate.
Action Items:

	ID 1498	Feature # 15	From Last 3.5m	Type Discharge Pipe-Storm Drain	Size both 0.05m diameter; Left pipe: 1.17m to substrate	Bank Both	Adjacent Land Use Commercial
Description: 2 pipes: one on left and one on right. Both 0.05m diameter, different drop to substrates.
Action Items:

	ID 1499	Feature # 16	From Last 3.0m	Type Discharge Pipe-Storm Drain	Size 0.05m diameter; 1.15m drop to substrate	Bank Left	Adjacent Land Use Commercial
Description: One drain on left side.
Action Items:

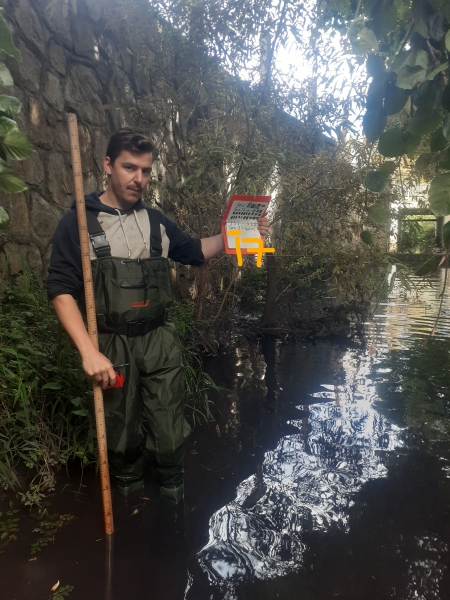

	ID 1500	Feature # 17	From Last 0.95m	Type LACK OF RIPARIAN VEGETATION	Size 11m length; 1m width	Bank Left	Adjacent Land Use Commercial
Description: Accumulation of sediment on left bank. Non-native vegetation and a willow growing.
Action Items: Remove non-native plants/replace with native species.

	ID 1501	Feature # 18	From Last 0m	Type Discharge Pipe-Storm Drain	Size all 0.05m diameter; 2 left pipes: .38m drop to sub	Bank Both	Adjacent Land Use Commercial
Description: 3 pipes: all 0.05m diameter; 2 pipes on left, 1 pipe on right. rn
Action Items: All pipes within area of sediment build-up (previous feature).

	ID 1502	Feature # 19	From Last 1.9m	Type Discharge Pipe-Storm Drain	Size all 0.05m diameter; 2 pipes on left: .22m drop to	Bank Left	Adjacent Land Use Undisturbed
Description: 4 pipes in total: 2 on left and 2 on right. All have 0.05m diameter and all different measurements for drop to substrate.
Action Items: one of these pipes is clogged on left bank.

	ID 1503	Feature # 20	From Last 3.6m	Type Discharge Pipe-Storm Drain	Size 0.05m diameter for all; Left pipes: 1.21m, .68m an	Bank Both	Adjacent Land Use Commercial
Description: 5 pipes in total, all within close proximity. Three pipes on the left bank, two pipes on right bank. All 0.05m diameter. All pipes have different meas
Action Items: Lots of cloud berries on right of bank!

	ID 1504	Feature # 21	From Last 3.1m	Type Discharge Pipe-Storm Drain	Size Left bank pipes: 1m diameter with a 2.6m drop to s	Bank Both	Adjacent Land Use Commercial
Description: Two pipes on left bank, one pipe on right bank. One of the pipes is turquoise colour on left bank.
Action Items:

	ID 1505	Feature # 22	From Last 3.3m	Type Discharge Pipe-Storm Drain	Size both 0.05m diameter; 2m drop to substrate, .7m dro	Bank Right	Adjacent Land Use Commercial
Description: 2 pipes, both on right side. both 0.05m diameter.
Action Items:

	ID 1506	Feature # 23	From Last 0m	Type Discharge Pipe-Storm Drain	Size .03 diameter, 3.4m drop to substrate	Bank Left	Adjacent Land Use Commercial
Description: Pipe high up on left hand side at the end of section 3.7.
Action Items:

Records 1 to 23 of 23
